Edge Treatment of laminated glass

Testing the Strength of Tru Vue® UltraVue® Laminated Glass

By JIT Companies

At some point in time everyone one of us is going to experience glass breakage and the first question is always going to be:



“How did this glass break?”



Broken laminated glass standing up
Broken laminated glass. Designed for shards to remain in place when broken to safeguard the object until the glass is replaced. Shatter resistance safeguards against injury and damage.



Sometimes the answer can be obvious, like a baseball hitting it. Today, we will focus on some other factors that are not so obvious, and on laminated glass strength.



Considerations:

  • The first thing to consider is the design of the glass part. If it is fabricated with sharp 90 degrees inside corners, it will be doomed from the start. A radius is always needed in these areas.  See image below for different edge finishes.
  • Depending on the size of the glass and how it will be used, you will need to consider using the correct thickness and type of glass.
  • Hole locations are another critical consideration, especially if the glass is going to be tempered for added strength and safety considerations.
  • Even the type of edge finish can have a dramatic effect on the strength of the glass.





Edge Treatment of laminated glass

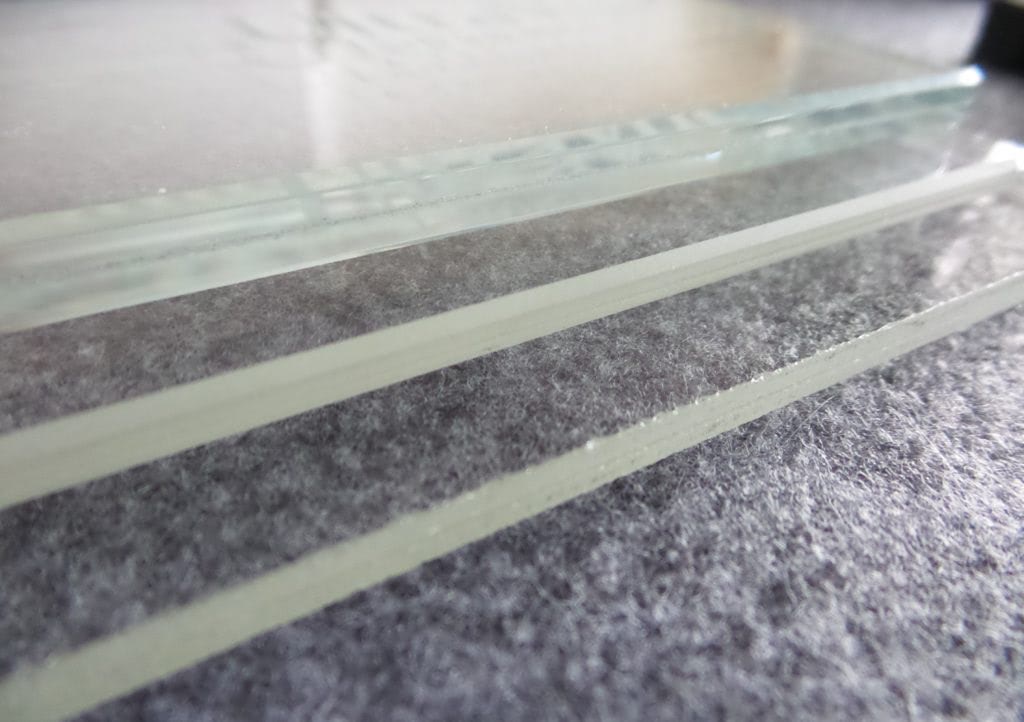

Three different edge finishes on Tru Vue UltraVue Laminated Glass. Top piece – Flat Edge Polish; Middle piece – Flat Edge Grind; Bottom piece – Waterjet cut edge



Testing UltraVue® Laminated Glass Strength



We tested the strength of Tru Vue® UltraVue® Laminated Glass (4.4mm thickness) to demonstrate how much stronger the glass can be with the proper edge finish applied to it. Find out which edge finish makes the glass stronger when we add weight to it: waterjet cut edge, flat edge grind, or flat edge polish, in this video.





Learn more about JIT’s glass edge options.

This article is intended for educational purposes only and does not replace independent professional judgment. Statements of fact and opinions expressed are those of the author(s) individually and, unless expressly stated to the contrary, are not the opinion or position of Tru Vue or its employees. Tru Vue does not endorse or approve, and assumes no responsibility for, the content, accuracy or completeness of the information presented.
