Conservation Reflection Control® Glass
- 99% UV Protection, Non-glare (Matte Finish)
This ultra protective glass scatters and diffuses light to reduce unwanted glare and helps to protect against UV damage.
Product Details
Features
- Matte finish reduces glare
- Blocks up to 99% of UV rays
- Proprietary coating is engineered for permanence
Applications
- Custom framing limited edition prints, original works of art and posters
- Use to reduce glare in rooms with a high volume of uncontrolled light
- Use to frame items that don’t require a lot of depth – a maximum of 2 matboards stacked is recommended
Testing & Certifications
- Passes Photographic Activity Test (PAT) ISO 18916
- Meets ISO 18902
- Passes RoHS Compliance ASTM B117-03
- Conservation Grade Protection
- ISO 18902 Photo Safe
Technical Info
- Substrate: Clear Float Glass
- Coating: Matte Finish

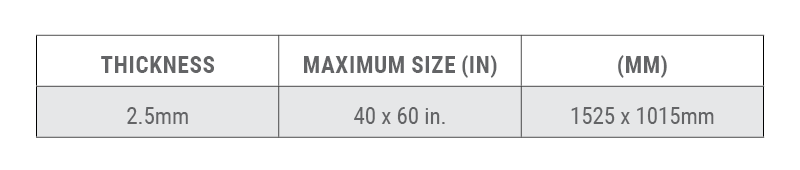

- Thickness: 2.5mm / .098″
- Maximum Size: 40″x60″ / 1015mm x 1525mm
- Reflection: 8% scatttered light (double-sided)
- Transmission: >89% (total)
- UV Block: up to 99% of 300nm to 380nm UV rays
Resources

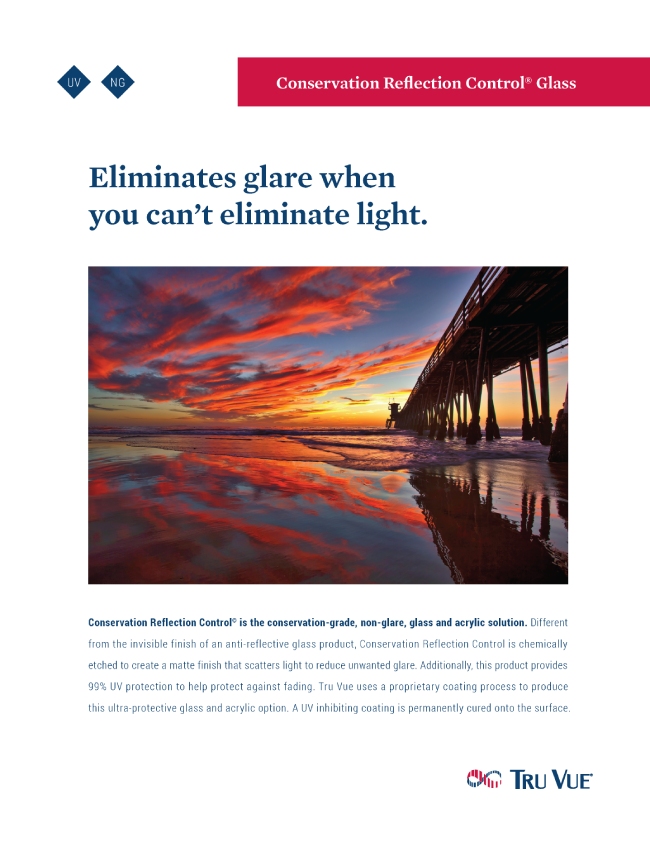

Conservation Reflection Control Glass Sell Sheet
Custom Framing Product Portfolio
English
Tips & Useful Information
Conservation Reflection Control® Glass FAQs
Is all UV filtering glazing the same?
No. There is a distinct difference between UV filtering glazing and glazing that provides UV protection. According to PPFA Guidelines for Framing Works of Art on Paper, for glazing to be labeled as providing UV protection, it must block at least 97% of the UV rays in the 300 to 380 nanometer range.
Tru Vue Conservation Grade glass and acrylic products offer this level of protection. In providing at least 97% UV protection, Tru Vue Conservation Grade products are considered “photo-safe” by meeting ISO 18902 and passing ISO 18916.
Is the UV coating permanent?
Yes. Tru Vue manufactures its Conservation Grade glass products by applying an inorganic silica-based UV inhibiting coating to the glass surface. The UV coating is “baked” into the glass, producing a permanently bonded coating. Tru Vue Conservation Grade glass products have been field tested for over 20 years and do not delaminate or degrade over time.
Specific to acrylic products, Tru Vue does not apply a UV coating to its Conservation Grade acrylic products. The UV protection is provided within the acrylic substrate and is permanent.
How can I tell which side of the Conservation Grade glass has the UV coating?
The inkjet printing or static cling sticker will indicate which side to score. The side to be scored is the non UV coated side, so the UV coating is on the opposite side. For Museum Glass and Conservation Clear the UV coated side is always the side with the inkjet printing or static cling sticker. For Conservation Reflection Control the UV coating is on the opposite side of the inkjet printing.
The UV coated side will also bead water or glass cleaner more than the non UV side. Using a razor blade you can apply a small light scratch on the edge of the glass which will be hidden by the rabbet of the frame. The UV coating will be scratched, the glass will not. Wear gloves while doing this to prevent cuts.
Which side of Tru Vue acrylic or glass should face the artwork?
For Conservation Grade acrylic, either side can face the artwork—both sides provide the same protective technology. For Conservation Grade glass, it’s recommended that the UV-coated side face the artwork; this side is usually marked with inkjet printing along the edge. However, protection is not compromised if reversed. If using Reflection Control or Conservation Reflection Control glass or acrylic, the matte side should face outward, and the non-matte side should face the artwork.
Care & Handling
Find out everything you need to know about Care & Handling for this product here.
Get Inspired
Discover how our advanced glazing technology protects and enhances artwork. Explore real-world case studies from around the world showcasing clarity, durability, and UV protection.
