Tru-ESD™ Acrylic
- Abrasion Resistant, Chemical Resistant, Safety & Shatter Resistant, Security, Static Dissipative (ESD)
Tru-ESD™ Acrylic sheets deliver unmatched performance in anti-static and electrostatic discharge (ESD) protection for critical applications. Using Tru Vue’s patented sputter coating technology, the ESD coating is atomically bonded to the substrate for exceptional durability, outstanding abrasion resistance, and a pristine appearance.
Product Details
Features
- Reduces surface static, minimizes dust attraction, protects components, and prevents ESD
- Amazing clarity/transparency
- Superior chemical surface resistance
- Blocks up to 93% of UV rays
- Durable hard coat protects against scratches
- Shatter resistance safeguards against injury and damage
- Cleans with Isopropyl Alcohol (IPA) for easy maintenance
- Excellent uniformity for reliable protection
- Proprietary coating is engineered for permanence
Applications
- Cleanroom Settings
- Healthcare Environments & Equipment
- Semiconductor Manufacturing
- Database Centers
- Manufacturing
- Partitions
- Protective Barriers
Testing & Certifications
- Surface Resistance: 10⁵–10⁷ Ohms (ANSI/ESD STM11.11)
- Surface Resistivity: 10⁶–10⁸ Ohms/sq (ASTM D257)
- Electrostatic Decay: < 0.05 sec (MIL-STD-3010, Method 4046)
- Light Transmission: ~90% at 3mm and 6mm thickness (ASTM D1003)
- Haze: ~2% (ASTM D1003)
- For a full list of product testing and certifications, please see our data sheet.
Technical Info
- Substrate: Cell Cast Acrylic
- Coating: Static Dissipative/ESD

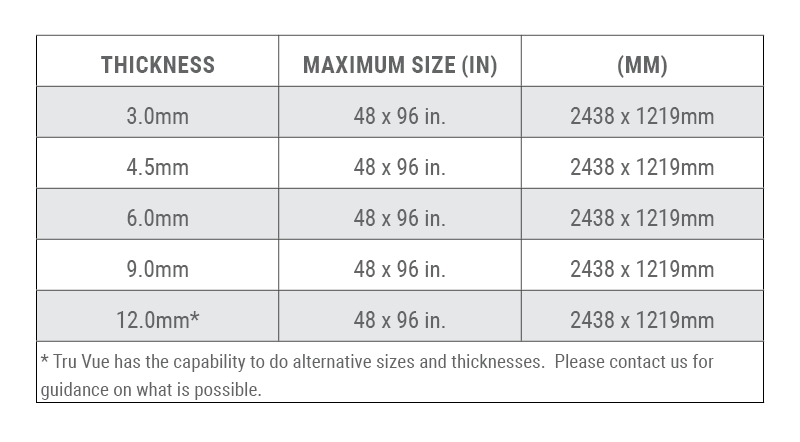

- Thickness: 3.0mm, 4.5mm, 6.0mm, 9.0mm, 12.0mm
- Maximum Size: 48” x 96”
- Light Transmission: ~90.0%
- UV Block: up to 93%
Resources
Tru-ESD Acrylic Product Data Sheet
English
Tru-ESD Sell Sheet
English
With over 50 years of proven protection and preservation, Tru Vue fine art acrylic and glass solutions are trusted by conservation and fine art professionals to protect and display the most celebrated works of art in the world.
If you’re looking for this document in different languages, you can download them below.

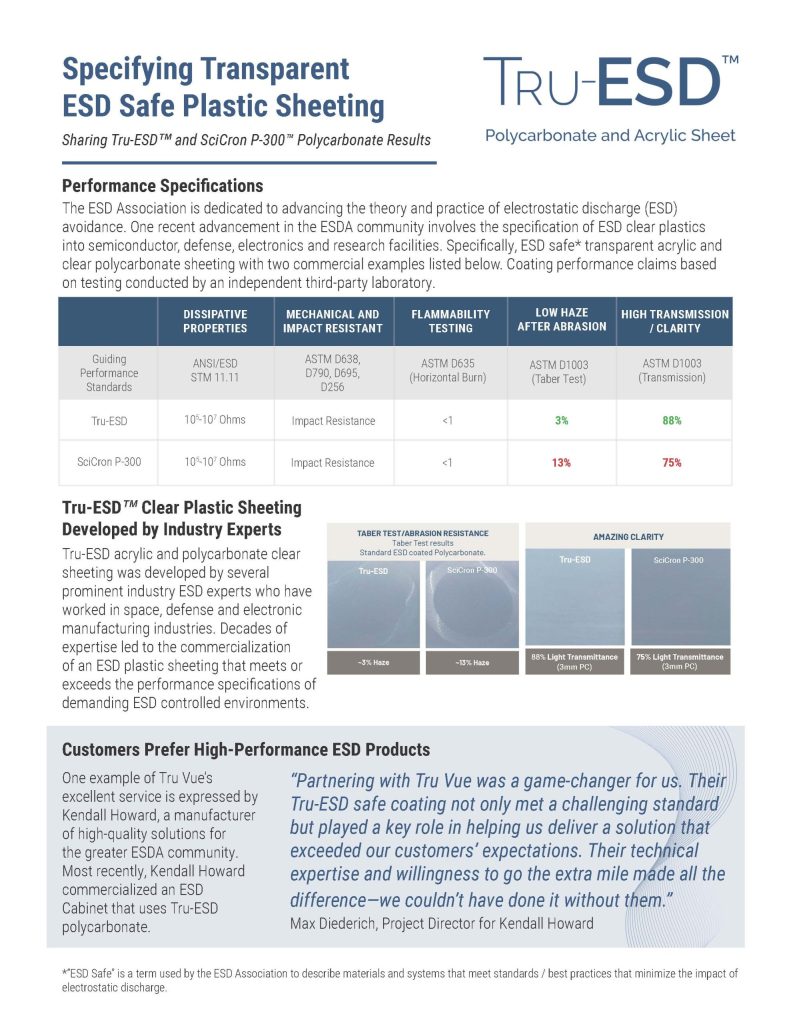

Tech Talk
